    • Lentil Peeling Machine Lentil Peeler
      Writer: Lentil Peeling Machine From: Lentil Peeling Machine
      Size: Big Medium Small Time: 2015-09-18 10:50:06

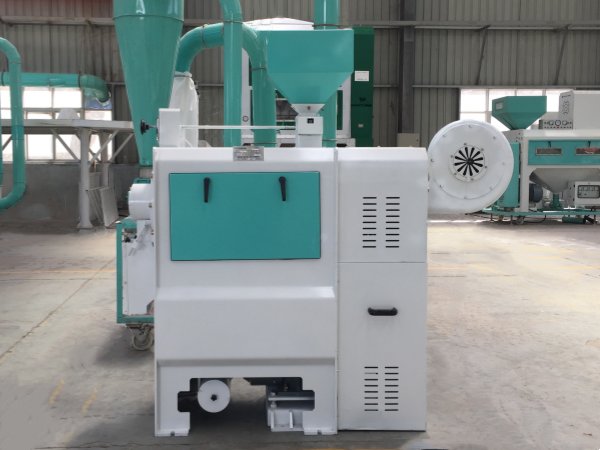

      bean bran removing machine.jpg


      VIDEO





       Workshop Processing for LENTIL PEELING MACHINE Lentil Peeler:

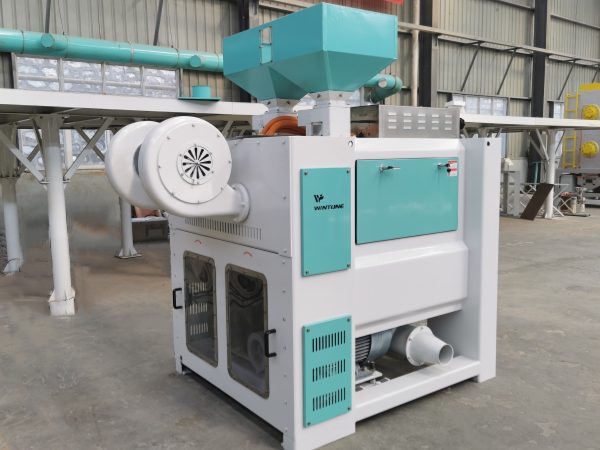

       Bean Bran Removing Machine bean peeling machine manufacturing process.jpg

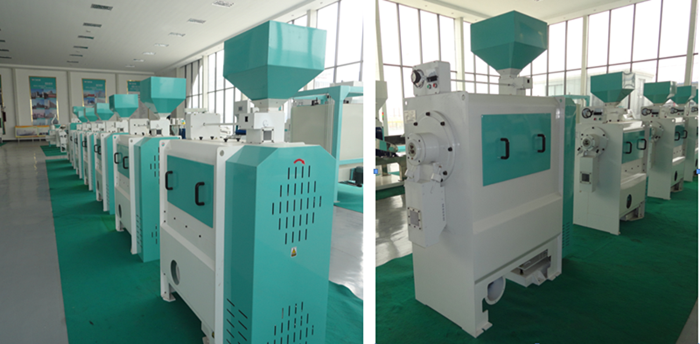

      Lentil Peeling Machine Shown at Exhibition Hall:

      bean peeling machine exhibition hall.jpg






      MTPS Lentil Peeling Machine can be used as the supporting equipment in bean processing technology or as the single equipment. MTPS lentil peeling machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.



      The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans skin continuously, which destroys the bonding strength among corn skin, material skin and endosperm, and makes lentil skin separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.

      Lentil Peeling Machine is used in the peeling process for bean processing and primary and further peeling process for food processing enterprises.
      It can be used in series or in parallel in complete processing line according to technological demand.
      Lentil Peeling Machine can process red bean, kidney bean, soybean, mung bean, lentil ; it is suitable for different beans peeling when changed related technical parameter.


      It has the aspiration and dust removal system outside, which ensures the best sanitary conditions.
      MTPS lentil peeling machine connects with the efficient aspiration system, which ensures the reliable discharging of lentil bran. It has the powerful cooling system and ensures the high sanitation standard.
      It is easily maintained and operated.
      It has quick-replaceable sieve plate and other parts. The durable emery roller and less abrasion parts make the equipment easily operated and maintained.


      MTPS Lentil Peeling Machine Technical Parameter:

      Model

      Emery Roll Diameter

      (mm)

      Emery Roll Length

      (mm)

      Spindle Speed

      r/min

      Yield

      t/h

      Power

      kW

      Air Volume

      m³/h

      Size

      (L*W*H)

      (mm)

      MTPS-18D/A

      Φ180

      660

      1300

      11.5

      22



      1370×700×1900

      MTPS-18D/B

      Φ180

      660

      1300

      11.5

      22

      1500-1800

      1410×1220×2030

      MTPS-25D/A

      Φ240

      660

      1050

      2-3

      30



      1515×660×2100

      MTPS-25D/B

      Φ240

      660

      1050

      2-3

      30

      1800-2100

      1515×1220×2100



      Peeled Lentil:
      Bean bran removing machine peeled lentil.jpg


      Bean bran removing machine peeled lentil.jpg



      Canada 120T/Day Lentil Peeling Project:

      Bean Bran Removing Machines Export Cases -Canada.jpg



      2T/Hour Lentil Peeling Line in Russia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Russia.jpg


      1T/Hour Lentil Peeling Line in Ethiopia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Ethiopia.jpg
