    • Lima Beans Hulling Machine
      Writer: Lima Beans Hulling Machine From: Lima Beans Hulling Machine
      Size: Big Medium Small Time: 2015-09-18 14:44:34

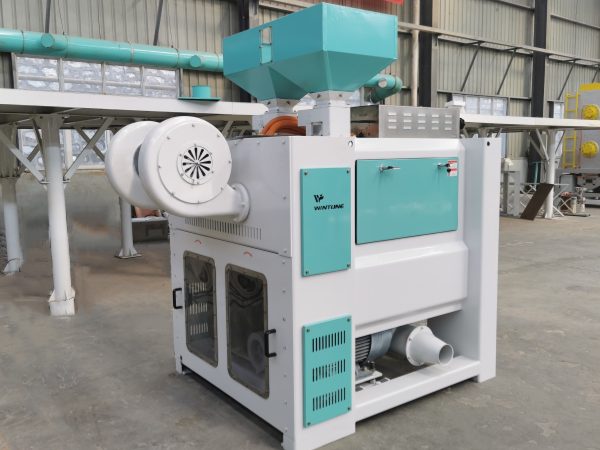

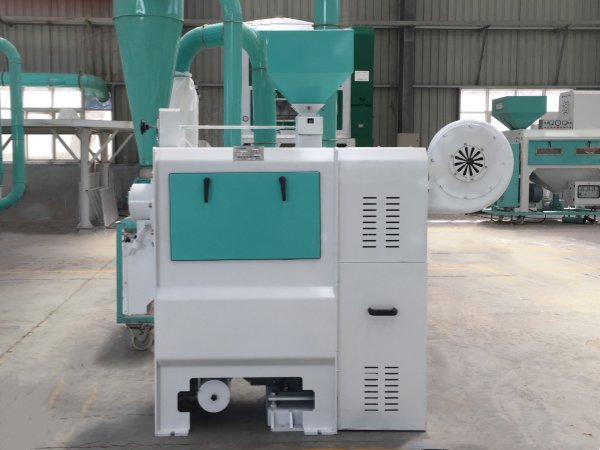

      lima beans hulling machine.jpg



      Lima Beans Hulling Machine can peel lima bean bran and collects the bean bran efficiently. Lima bean peeling machine can work by itself, or cooperate with bean cleaning machine and bean grinder in the bean processing plant.

      Lima Beans Hulling Machine utilizes high-speed rotating emery roller to cut and rub the bean cortex continuously, and the process destroys the bonding strength between bean endosperm and bean embryo, which can produce qualified peeled beans. It has highly efficient air suction chamber inside to collect the bean cortex from peeling process. The bean peeling rate can reach 95% above. It is composed of charging device, spiral conveyor, peeling chamber, transmission gear, aggregate bin, discharge device and dust catcher.

      Lima Beans Hulling Machine has the similar working principle with other beans peeler. We can use one bean peeling machine to peel different kinds of beans by adjusting the inside working pressure. Therefore, it has wide

      Hulled Lima Beans

      hulled lima beans.jpg



      Lima Beans Hulling Machine technical parameter:

      Model

      Emery Roll Diameter

      (mm)

      Emery Roll Length

      (mm)

      Spindle Speed

      r/min

      Yield

      t/h

      Power

      kW

      Air Volume

      m³/h

      Size

      (L*W*H)

      (mm)

      MTPS-18D/A

      Φ180

      660

      1300

      11.5

      22



      1370×700×1900

      MTPS-18D/B

      Φ180

      660

      1300

      11.5

      22

      1500-1800

      1410×1220×2030

      MTPS-25D/A

      Φ240

      660

      1050

      2-3

      30



      1515×660×2100

      MTPS-25D/B

      Φ240

      660

      1050

      2-3

      30

      1800-2100

      1515×1220×2100
