    • Soybean Peeling and Milling Project
      Writer: Soybean Peeling and Milling pr From: Soybean Peeling and Milling project
      Size: Big Medium Small Time: 2015-04-14 10:10:36

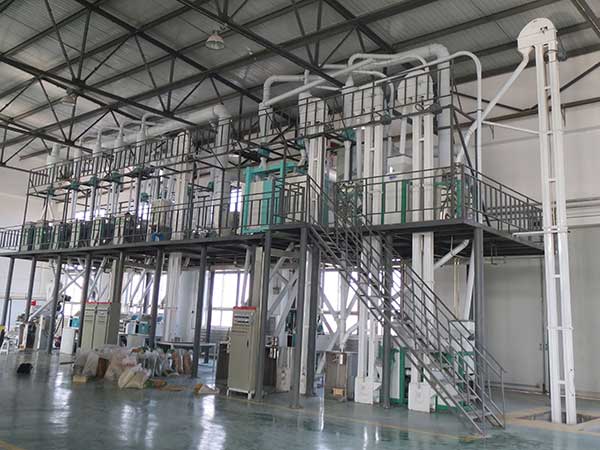

      soybean milling machine.JPG

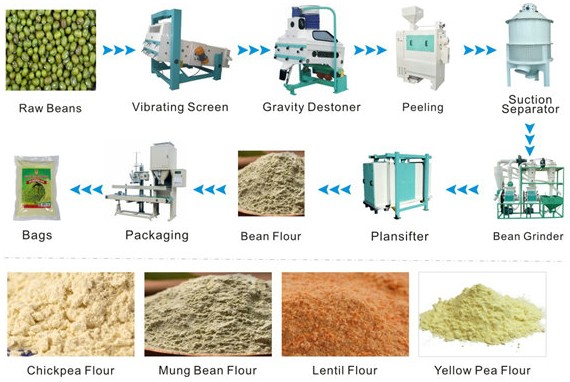

      Technological process of soybean peeling and milling project
      1.Soybean cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.

      2. Soybean color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.
      3. Soybean peeling section: it adopts peeling, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)
      1)Peeling: it can peel the bean bran and separate and collect it by effective aspiration system;
      2)Brushing: it can separate the micro bran and dust which adheres to the material surface.

      4. Soybean grading section: it adopts different screens and classify the material into different grades according to the size.
      5. Soybean kernel making and grits milling section: it adopts the technology of three peeling sections, one grits making section, grading and suspension.
      1)Peeling section: it can peel the bean bran and separate and collect it by effective aspiration system and produce whole peeled kernels;
      2) Bean grits making section: it uses fine bean grits machine and mill beans into bean grits;
      3) Bean kernels and bean grits grading section: it adopts different screens and classifies bean kernels or bean grits into different grades according to the size.
      4)Suspension: it separates bean bran by utilizing airflow according to different material gravity.






      6. Soybean flour milling section: it adopts the technology of burdening, several processes of grinding and screening and grading.
      1)Burdening: it can mix different material according to different requirements for different products;
      2)Grinding: it can grind or mill the beans into fine bean flour by the professional soybean milling machine;
      3)Screening: it separates the bean flour.
      Soy flour and grits enhance the nutrition and texture of products. Available in a variety of granulations, soy flour and grits have multiple uses, including extending the freshness and shelf-life of many foods.

      7. Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.
      End products of soybean peeling and milling project:
      1.Range of application:soybean, broad bean, lentil, cowpea, mung bean, black soya bean, kidney and other beans processing.
      2. Structure of the end products: fine soybeans, soybean kernels, soybean grits (soybean meal), soybean flour (powder).
      3. Yield rate: it can be adjustable according to your requirement.
      4.Technical index of the end products:
      A. Sand content:<0.02%
      B. Magnetic metal content: <0.003/kg
      C. Moisture:storage type <16%
      D. Appearance and taste: good color, high peeling efficiency, bright and smooth bean kernels, pure bean taste.

      Technical parameter of Soybean Peeling and Milling Project:

      Type
      Power (kw)
      Power Consumption(kw/h)
      Capacity(t/24h)
      Workshop Dimension(l*w*h/m)
      10t
      24
      38-40
      10
      10*4*4 (steel structure)
      20t
      56
      38-40
      20
      16*5*5 (steel structure)
      30t
      72
      38-40
      30
      20*5*5 (steel structure)
      50t
      119
      38-40
      50
      20*5*7 (steel structure)
      100t
      238
      38-40
      100
      30*5*7 (steel structure)
